Deck Plan 2L084

Available in 1 Sizes

Plan 2L084 - 23' x 16'
Select this plan to continue to step 2

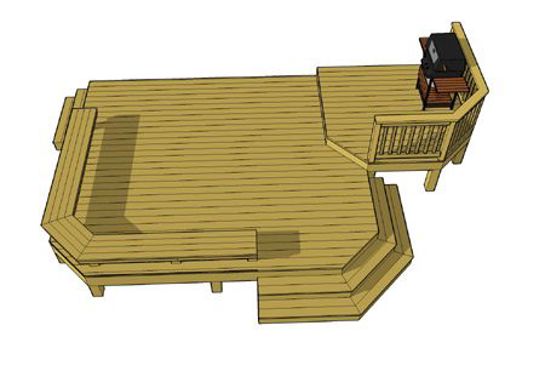

3D View

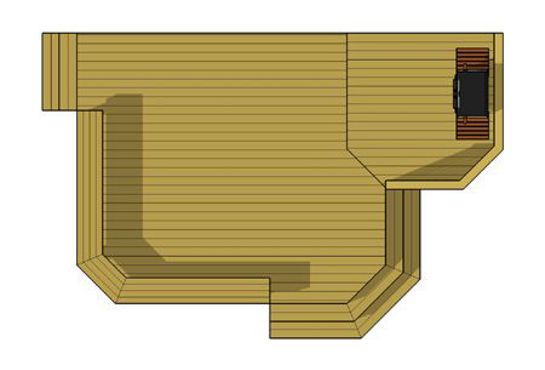

Plan 2L084

This 2 level deck includes a 8' x 8' top deck with clipped corners as a point of entry and grilling area. An angled step intersects with the 16' x 14' bottom deck which serves as the primary entertaining area. The bottom deck features a angled bench and a cascading staircase. The bottom deck does not require guard rails because it is less than 30" above grade. This allows for an open field of view and presents a better visual connection with the surrounding landscape.

  • Square Feet: 298
  • Width: 23'
  • Depth: 16'
  • Height: 2' 6"
  • Levels: 2

Download Plan

File Description
Plans Guide Plans Guide
2L084 2L084
2L084 Reverse 2L084 Reverse
Front Elevation 2L084 Front Elevation
Side Elevation 2L084 Side Elevation
Reverse Front Elevation 2L084 Reverse Front Elevation
Reverse Side Elevation 2L084 Reverse Side Elevation
Materials Breakdown A list of materials broken down by deck section specific to this plan.
Materials Order List A list of materials for ordering specific to this plan.
Plan Specs A list of specs specific to this plan.

Estimated Material Cost

Material Estimated Cost
Pressure Treated Pine $2,471.08
Composite $4,077.96
Exotic Hardwood $5,866.58
Cedar $3,059.15
Redwood $2,928.28
