Plan 2L009

Available in 1 Sizes

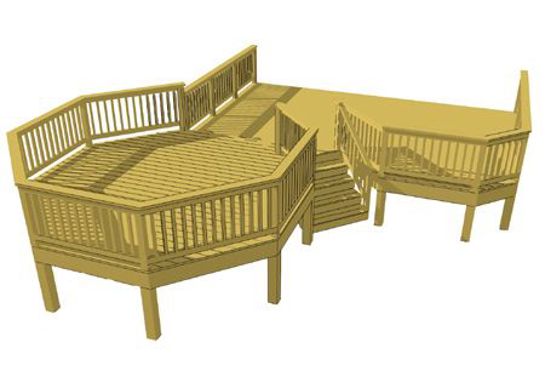

This spacious two level deck features a 14' x 14' octagon that functions as the primary entertaining area. The octagon form is elevated and set 12' from the house to accomodate views and to engage the landscape. The bottom deck includes a grill bay and a pocket style staircase that conceals itself between the 2 deck levels.

SELECT A SIZE:

Details for Deck Plan 2L009:
  • Square Feet: 410
  • Width: 24' 2"
  • Depth: 26'
  • Height: 3' 9"
  • Levels: 2

Downloadable Deck Plans and Resources

Log in or create an account to access the resources below.

Access your free deck plan resources below.


  • icon

    Plans Guide

    Comprehensive deck construction guide with details for footings, ledger board, support, deck beam and joist, post, stairs, and guard rails

    Comprehensive deck construction guide with details for footings, ledger board, support, deck beam and joist, post, stairs, and guard rails

  • icon

    Deck Plans

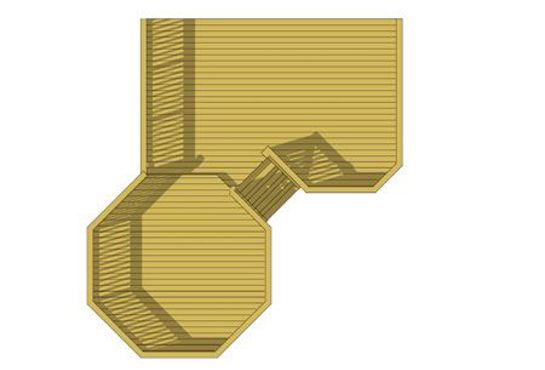

    Perspective, plan view, and footing layout plans 2L009

    Perspective, plan view, and footing layout plans 2L009

  • icon

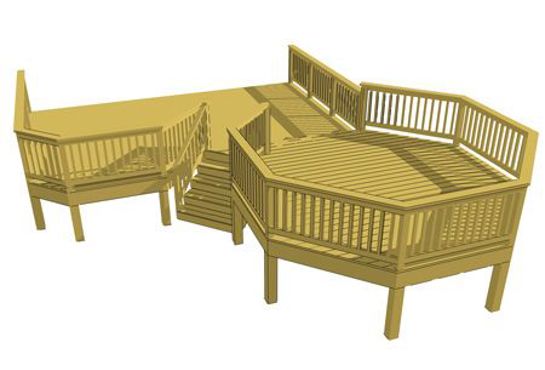

    2L009 Reverse

    2L009 Reverse

    2L009 Reverse

  • icon

    Front Elevation

    2L009 Front Elevation

    2L009 Front Elevation

  • icon

    Side Elevation

    2L009 Side Elevation

    2L009 Side Elevation

  • icon

    Reverse Front Elevation

    2L009 Reverse Front Elevation

    2L009 Reverse Front Elevation

  • icon

    Reverse Side Elevation

    2L009 Reverse Side Elevation

    2L009 Reverse Side Elevation

  • icon

    Materials Breakdown

    A list of materials broken down by deck section specific to this plan

    A list of materials broken down by deck section specific to this plan

  • icon

    Materials Order List

    A list of materials for ordering specific to this plan

    A list of materials for ordering specific to this plan

  • icon

    Plan Specs

    A list of specs specific to this plan

    A list of specs specific to this plan
