Plan 1LP3014
Available in 21 Sizes

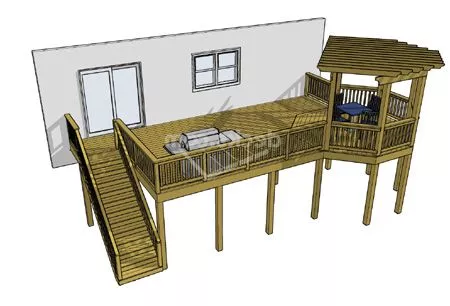

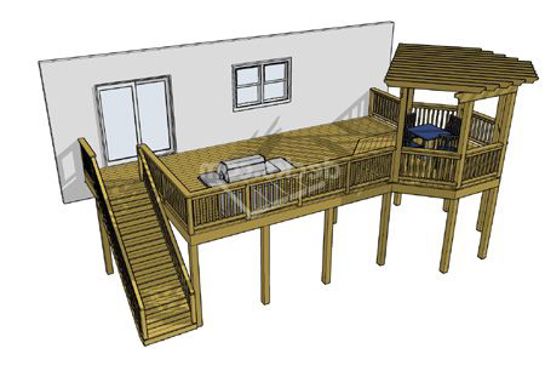

This deck design features a 12' x 12' octagon that is covered by an overhead pergola inset into a 30' x 14' base deck . A nice sized grill area is positioned across the front of the deck. A full length staircase extends away from the house from a landing located the edge of the deck.
SELECT A SIZE:
Available sizes range from 21' 6"x15' 6" to 33' 6"x19' 6"
Details for Deck Plan 1LP3014:
- Square Feet: 419
- Width: 33' 6"
- Depth: 17' 6"
- Height: 8' 2"
- Levels: 1
Downloadable Deck Plans and Resources
Log in or create an account to access the resources below.
Access your free deck plan resources below.
-
Plans Guide
Comprehensive deck construction guide with details for footings, ledger board, support, deck beam and joist, post, stairs, and guard rails
Comprehensive deck construction guide with details for footings, ledger board, support, deck beam and joist, post, stairs, and guard rails
-
Deck Plans

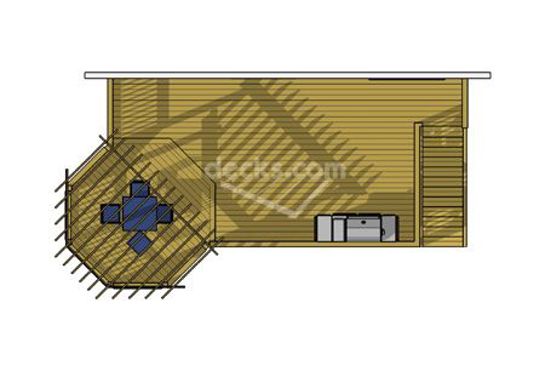

Perspective, plan view, and footing layout plans 1LP3014
Perspective, plan view, and footing layout plans 1LP3014
-

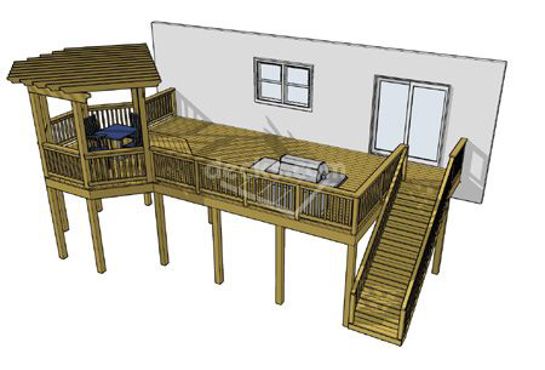

1LP3014 Reverse
1LP3014 Reverse
1LP3014 Reverse
-
Pergola Detail
Pergola Detail
Pergola Detail
-
Front Elevation
1LP3014 Front Elevation
1LP3014 Front Elevation
-
Side Elevation
1LP3014 Side Elevation
1LP3014 Side Elevation
-
Reverse Front Elevation
1LP3014 Reverse Front Elevation
1LP3014 Reverse Front Elevation
-
Reverse Side Elevation
1LP3014 Reverse Side Elevation
1LP3014 Reverse Side Elevation
-
Materials Breakdown
A list of materials broken down by deck section specific to this plan
A list of materials broken down by deck section specific to this plan
-
Materials Order List
A list of materials for ordering specific to this plan
A list of materials for ordering specific to this plan
-
Plan Specs
A list of specs specific to this plan
A list of specs specific to this plan
