Plan 1LP1816
Available in 21 sizes

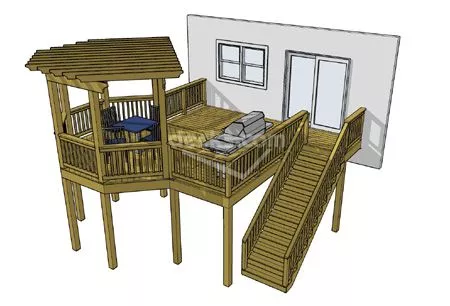

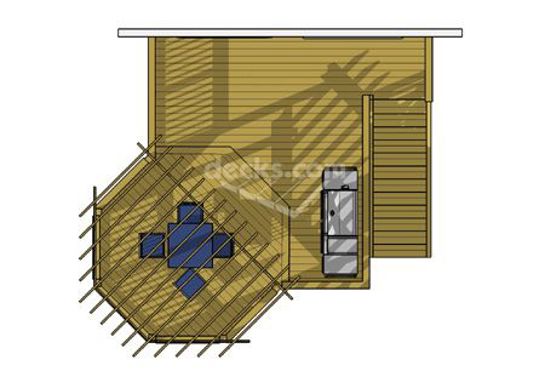

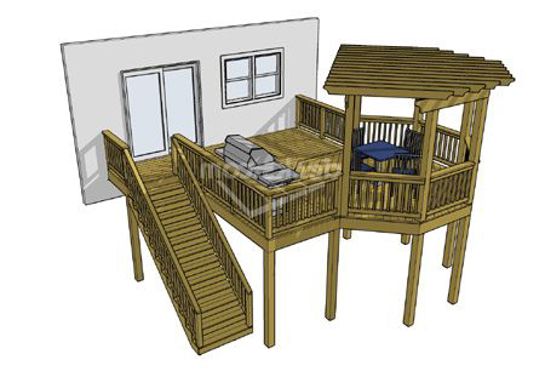

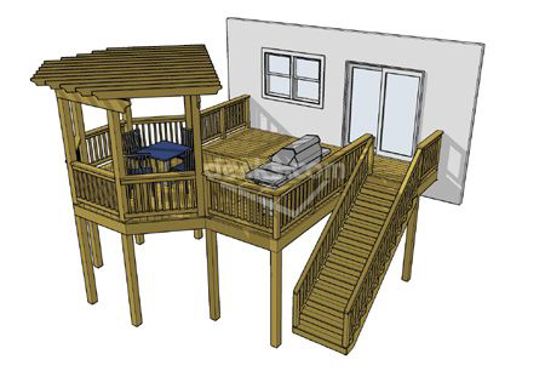

This deck design features a 12' x 12' octagon that is covered by an overhead pergola inset into a 18' x 16' base deck . A nice sized grill area is positioned across the front of the deck. A full length staircase extends away from the house from a landing located the edge of the deck.
Tap an image top zoom in
Details for Deck Plan 1LP1816:
- Square Feet: 278
- Width: 21'6"
- Depth: 19'6"
- Height: 8'2"
- Levels: 1
Access Downloadable Deck Plans & Resources
Log in or create an account to access the resources below.
Plans Guide
Comprehensive deck construction guide with details for footings, ledger board, support, deck beam and joist, post, stairs, and guard rails
1LP1816
1LP1816
Pergola Detail
Pergola Detail
Front Elevation
1LP1816 Front Elevation
Side Elevation
1LP1816 Side Elevation
Reverse Front Elevation
1LP1816 Reverse Front Elevation
Reverse Side Elevation
1LP1816 Reverse Side Elevation
Materials Breakdown
A list of materials broken down by deck section specific to this plan
Materials Order List
A list of materials for ordering specific to this plan
Plan Specs
A list of specs specific to this plan
