Plan 1LU2814
Available in 9 sizes

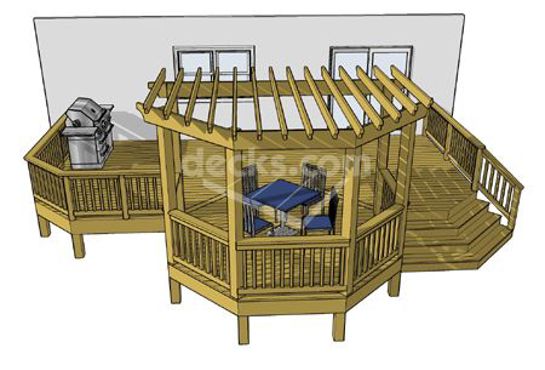

This single level deck features a 12' x 12' octagon pergola positioned in the front center of a 28' x 14' base deck. On one side of the pergola there is an attractive dovetail stair and on the opposite side there is a large grill area.
Tap an image top zoom in
Details for Deck Plan 1LU2814:
- Square Feet: 492
- Width: 28'
- Depth: 22'6"
- Height: 2'6"
- Levels: 1
Access Downloadable Deck Plans & Resources
Log in or create an account to access the resources below.
Plans Guide
Comprehensive deck construction guide with details for footings, ledger board, support, deck beam and joist, post, stairs, and guard rails
Deck Plans

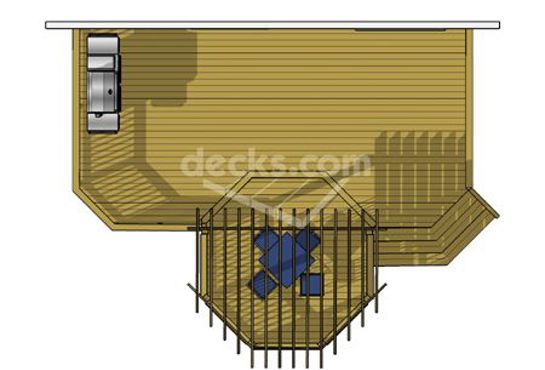

Perspective, plan view, and footing layout plans 1LU2814

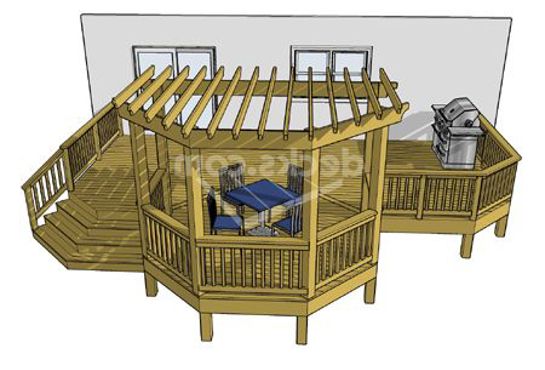

1LU2814 Reverse
1LU2814 Reverse
Pergola Detail
Pergola Detail
Front Elevation
1LU2814 Front Elevation
Side Elevation
1LU2814 Side Elevation
Reverse Front Elevation
1LU2814 Reverse Front Elevation
Reverse Side Elevation
1LU2814 Reverse Side Elevation
Materials Breakdown
A list of materials broken down by deck section specific to this plan
Materials Order List
A list of materials for ordering specific to this plan
Plan Specs
A list of specs specific to this plan
