Plan 1LE3016
Available in 23 Sizes

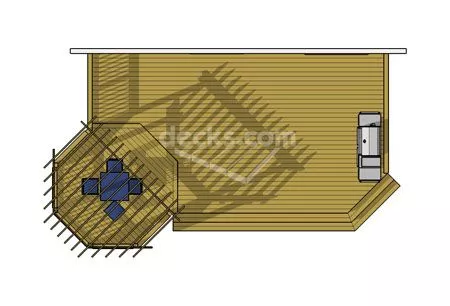

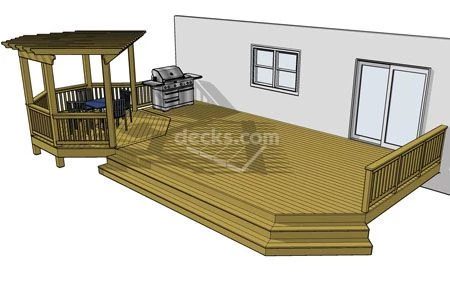

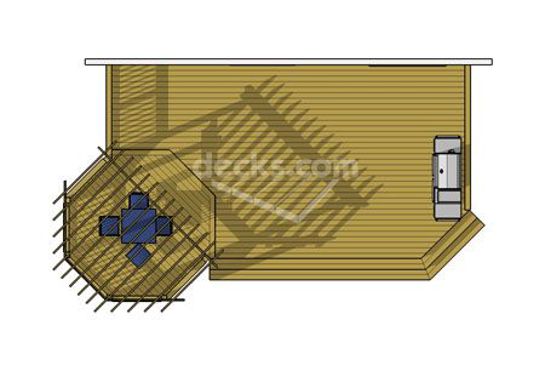

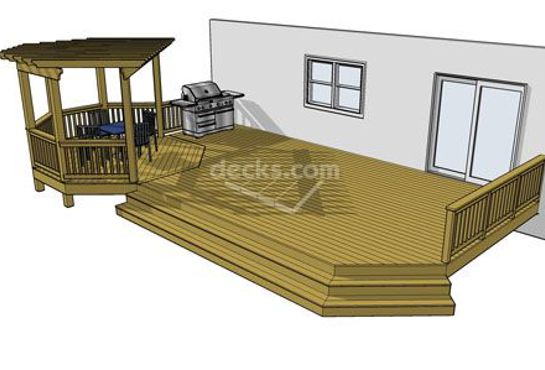

This deck design features a 12' x 12' octagon that is covered by an overhead pergola inset into a 30' x 16' base deck . A nice sized grill area is positioned between the octagon and the house. The opposite half of the deck is neatly wrapped by a cascading staircase creating a broad traffic lane between the house and yard.
Plan 1LE3016
Available in 23 Sizes
This deck design features a 12' x 12' octagon that is covered by an overhead pergola inset into a 30' x 16' base deck . A nice sized grill area is positioned between the octagon and the house. The opposite half of the deck is neatly wrapped by a cascading staircase creating a broad traffic lane between the house and yard.
SELECT A SIZE:
Available sizes range from 19' 6"x15' 6" to 33' 6"x19' 6"
Details for Deck Plan 1LE3016:
- Square Feet: 507
- Width: 33' 6"
- Depth: 19' 6"
- Height: 1' 11"
- Levels: 1
Downloadable Deck Plans and Resources
Log in or create an account to access the resources below.
Access your free deck plan resources below.
-
Plans Guide
Comprehensive deck construction guide with details for footings, ledger board, support, deck beam and joist, post, stairs, and guard rails
Comprehensive deck construction guide with details for footings, ledger board, support, deck beam and joist, post, stairs, and guard rails
-
1LE3016
1LE3016
1LE3016
-

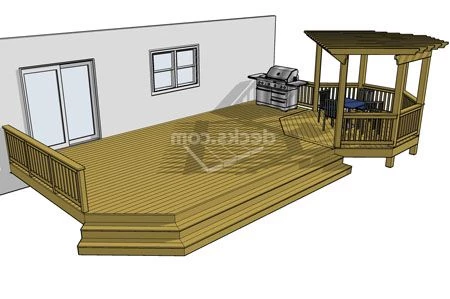

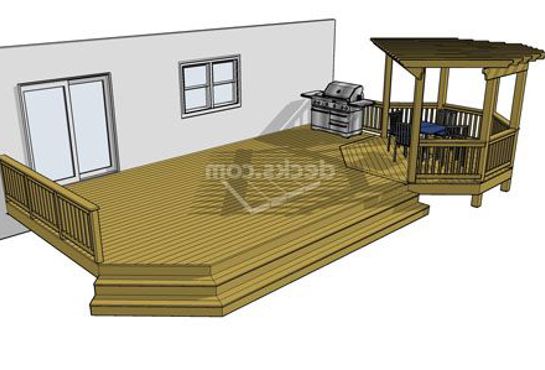

1LE3016 Reverse
1LE3016 Reverse
1LE3016 Reverse
-
Pergola Detail
Pergola Detail
Pergola Detail
-
Elevations
1LE3016 Elevations
1LE3016 Elevations
-
Reverse Elevations
1LE3016 Reverse Elevations
1LE3016 Reverse Elevations
-
Materials Breakdown
A list of materials broken down by deck section specific to this plan
A list of materials broken down by deck section specific to this plan
-
Materials Order List
A list of materials for ordering specific to this plan
A list of materials for ordering specific to this plan
-
Plan Specs
A list of specs specific to this plan
A list of specs specific to this plan
