Plan 1LE2012

Available in 23 Sizes

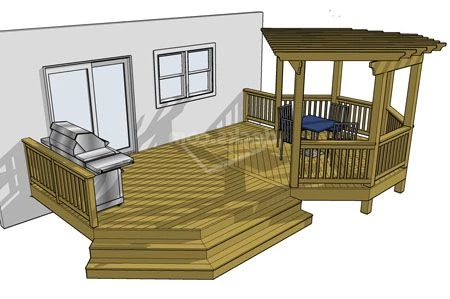

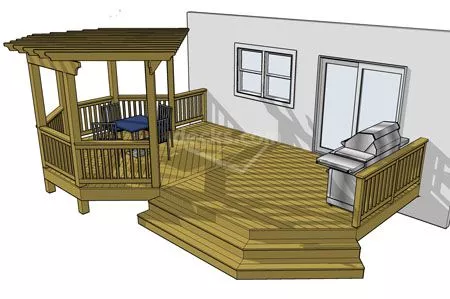

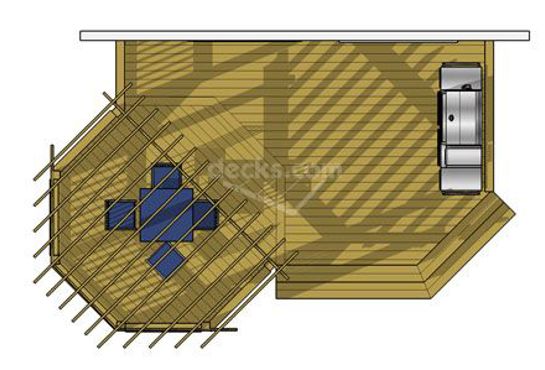

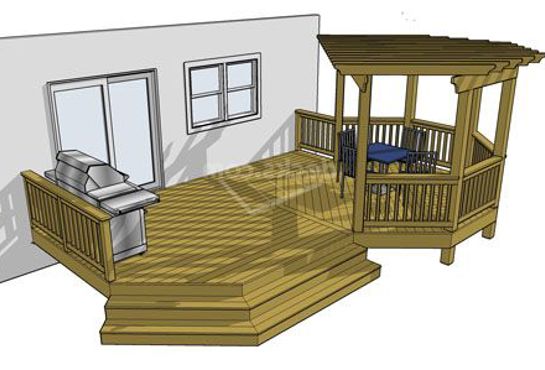

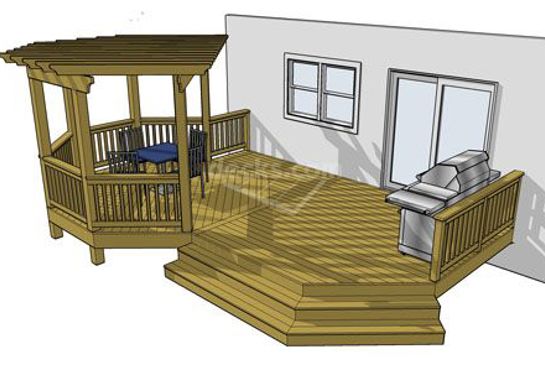

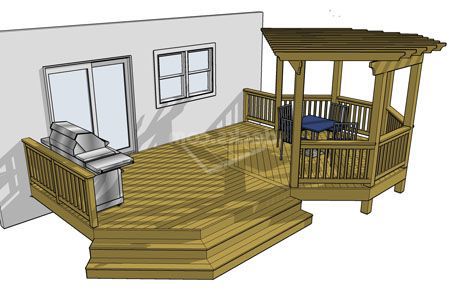

This deck design features a 12' x 12' octagon that is covered by an overhead pergola inset into a 20' x 12' base deck . A nice sized grill area is positioned between the octagon and the house. The opposite half of the deck is neatly wrapped by a cascading staircase creating a broad traffic lane between the house and yard.

SELECT A SIZE:

Available sizes range from 19' 6"x15' 6" to 33' 6"x19' 6"

Details for Deck Plan 1LE2012:
  • Square Feet: 275
  • Width: 23' 6"
  • Depth: 15' 6"
  • Height: 1' 11"
  • Levels: 1

Downloadable Deck Plans and Resources

Log in or create an account to access the resources below.

Access your free deck plan resources below.


  • icon

    Plans Guide

    Comprehensive deck construction guide with details for footings, ledger board, support, deck beam and joist, post, stairs, and guard rails

    Comprehensive deck construction guide with details for footings, ledger board, support, deck beam and joist, post, stairs, and guard rails

  • icon

    Deck Plans

    Perspective, plan view, and footing layout plans 1LE2012

    Perspective, plan view, and footing layout plans 1LE2012

  • icon

    1LE2012 Reverse

    1LE2012 Reverse

    1LE2012 Reverse

  • icon

    Pergola Detail

    Pergola Detail

    Pergola Detail

  • icon

    Elevations

    1LE2012 Elevations

    1LE2012 Elevations

  • icon

    Reverse Elevations

    1LE2012 Reverse Elevations

    1LE2012 Reverse Elevations

  • icon

    Materials Breakdown

    A list of materials broken down by deck section specific to this plan

    A list of materials broken down by deck section specific to this plan

  • icon

    Materials Order List

    A list of materials for ordering specific to this plan

    A list of materials for ordering specific to this plan

  • icon

    Plan Specs

    A list of specs specific to this plan

    A list of specs specific to this plan

Need to create an account? Sign up here.
