Plan 1LE1614
Available in 23 sizes

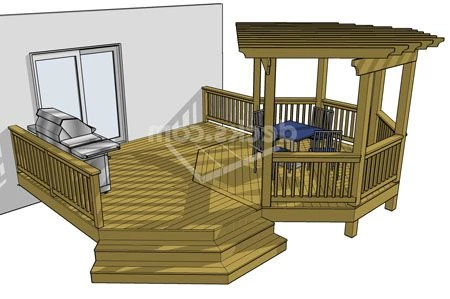

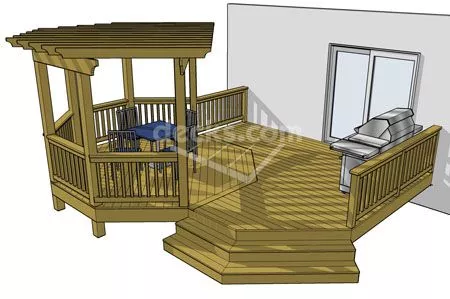

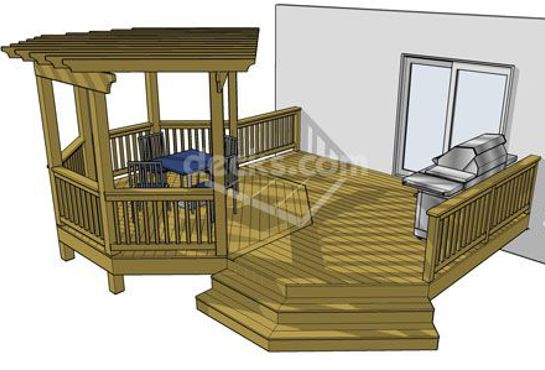

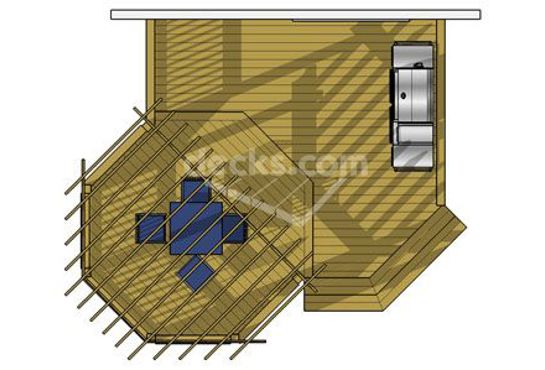

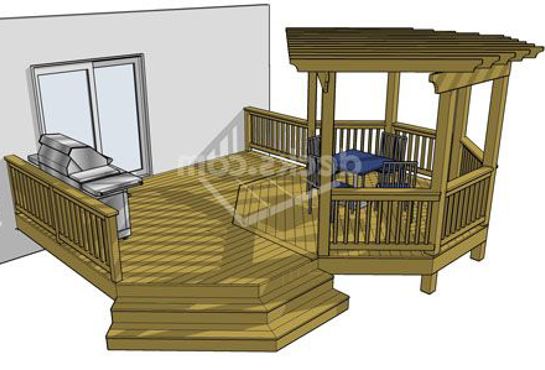

This deck design features a 12' x 12' octagon that is covered by an overhead pergola inset into a 16' x 14' base deck . A nice sized grill area is positioned between the octagon and the house. The opposite half of the deck is neatly wrapped by a cascading staircase creating a broad traffic lane between the house and yard.
Tap an image top zoom in
Details for Deck Plan 1LE1614:
- Square Feet: 258
- Width: 19'6"
- Depth: 17'6"
- Height: 1'11"
- Levels: 1
Access Downloadable Deck Plans & Resources
Log in or create an account to access the resources below.
Plans Guide
Comprehensive deck construction guide with details for footings, ledger board, support, deck beam and joist, post, stairs, and guard rails
Deck Plans
Perspective, plan view, and footing layout plans 1LE1614
1LE1614 Reverse
1LE1614 Reverse
Pergola Detail
Pergola Detail
Elevations
1LE1614 Elevations
Reverse Elevations
1LE1614 Reverse Elevations
Materials Breakdown
A list of materials broken down by deck section specific to this plan
Materials Order List
A list of materials for ordering specific to this plan
Plan Specs
A list of specs specific to this plan
Need to create an account? Sign up here.
