Plan 1LL1612
Available in 12 sizes

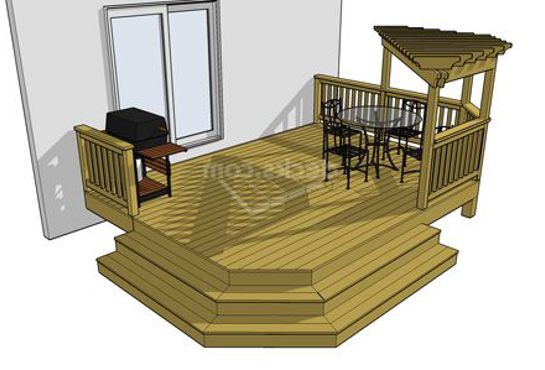

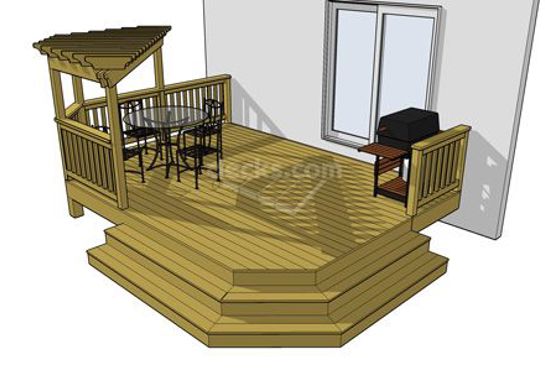

This 16' x 12' deck features clipped corners, an overhead pergola, and a cascading staircase. The pergola provides shade and an element of enclosure over one corner of the deck. Vines may be trained to cover the arbor for a vegatative cover that offers an interesting diffused light. A grilling area is positioned along a short rail beside the house.
Tap an image top zoom in
Details for Deck Plan 1LL1612:
- Square Feet: 180
- Width: 16'
- Depth: 12'
- Height: 1'11"
- Levels: 1
Access Downloadable Deck Plans & Resources
Log in or create an account to access the resources below.
Plans Guide
Comprehensive deck construction guide with details for footings, ledger board, support, deck beam and joist, post, stairs, and guard rails
Deck Plans

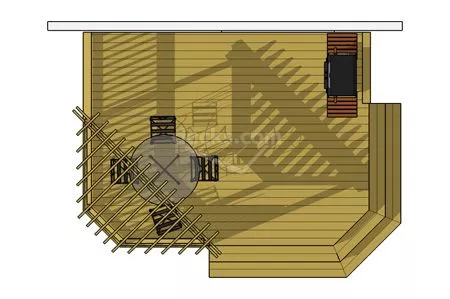

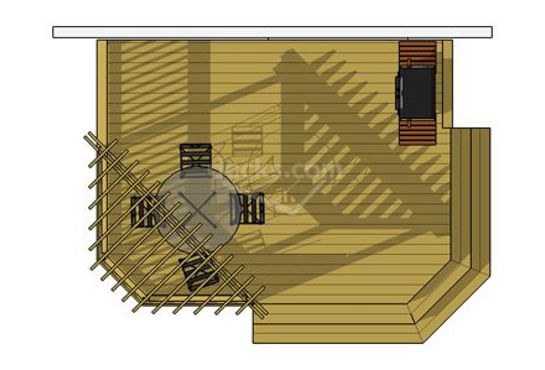

Perspective, plan view, and footing layout plans 1LL1612
1LL1612 Reverse
1LL1612 Reverse
L Pergola Detail
L Pergola Detail
Front Elevation
1LL1612 Front Elevation
Side Elevation
1LL1612 Side Elevation
Reverse Front Elevation
1LL1612 Reverse Front Elevation
Reverse Side Elevation
1LL1612 Reverse Side Elevation
Materials Breakdown
A list of materials broken down by deck section specific to this plan
Materials Order List
A list of materials for ordering specific to this plan
Plan Specs
A list of specs specific to this plan
