Plan 2LW2416
Available in 6 sizes

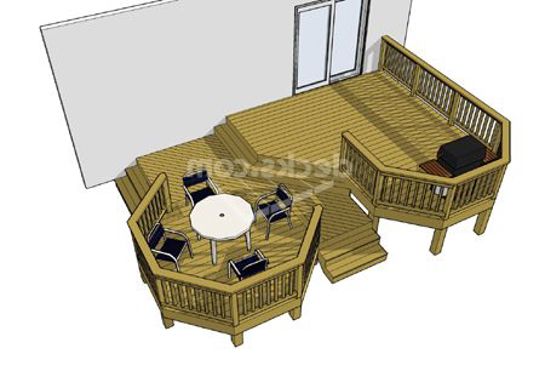

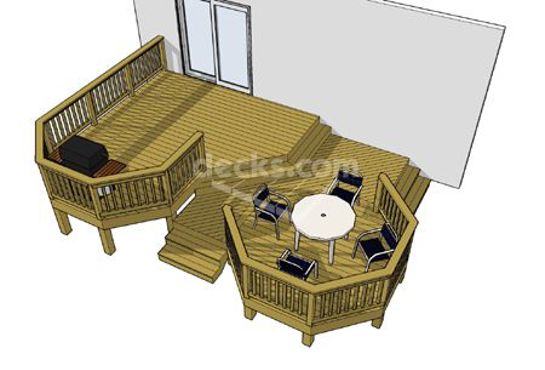

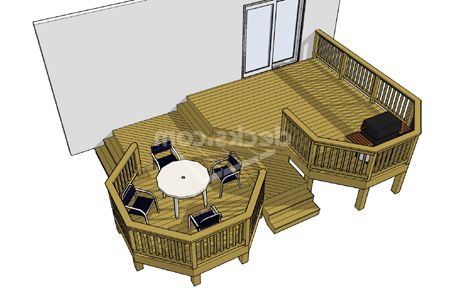

This interesting 2 level deck uses a central walkway and an angled stair to connect 2 distinct octagonal deck areas. A graceful entrance to your home, this 24' x 16' deck is versatile and attractive. This design attaches 21' along the house wall.
Tap an image top zoom in
Details for Deck Plan 2LW2416:
- Square Feet: 343
- Width: 24'
- Depth: 16'
- Height: 3'2"
- Levels: 2
Access Downloadable Deck Plans & Resources
Log in or create an account to access the resources below.
Plans Guide
Comprehensive deck construction guide with details for footings, ledger board, support, deck beam and joist, post, stairs, and guard rails

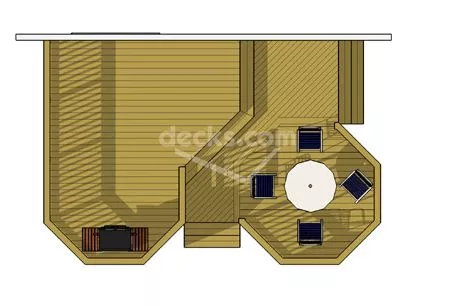

1LW2416
1LW2416

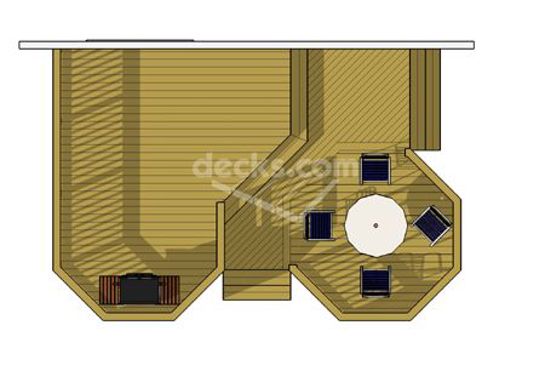

1LW2416 Reverse
1LW2416 Reverse
Reverse Side Elevation
2LW2416 Reverse Side Elevation
Side Elevation
2LW2416 Side Elevation
Front Elevation
2LW2416 Front Elevation
Reverse Front Elevation
2LW2416 Reverse Front Elevation
Materials Breakdown
A list of materials broken down by deck section specific to this plan
Materials Order List
A list of materials for ordering specific to this plan
Plan Specs
A list of specs specific to this plan
