Plan 2LM3614P16
Available in 12 sizes

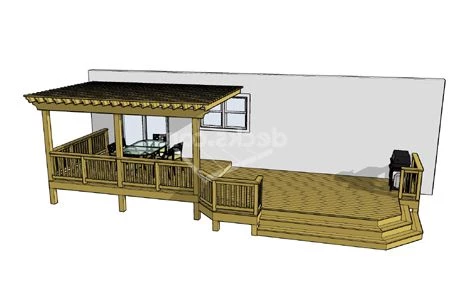

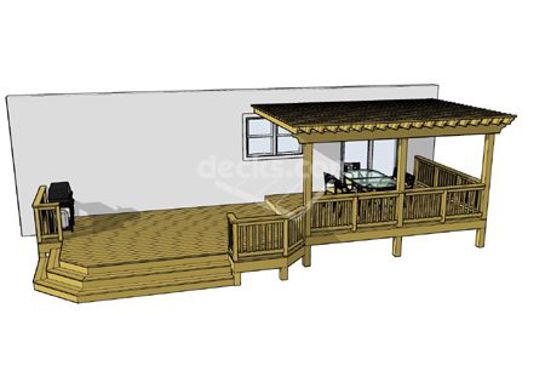

This 2 level deck features a 16' x 12' top deck completely covered by a decorative pergola. The 20' x 14' bottom deck design casually introduces a grilling area and stepped back cascading stairs into the fold. Notice how the stairs create a formal and inviting entrance that is neatly positioned within the deck frame. This plan comes with a pergola and house attachment detail.
Tap an image top zoom in
Details for Deck Plan 2LM3614P16:
- Square Feet: 417
- Width: 36'
- Depth: 14'
- Height: 2'6"
- Levels: 2
Access Downloadable Deck Plans & Resources
Log in or create an account to access the resources below.
Plans Guide
Comprehensive deck construction guide with details for footings, ledger board, support, deck beam and joist, post, stairs, and guard rails
Deck Plans

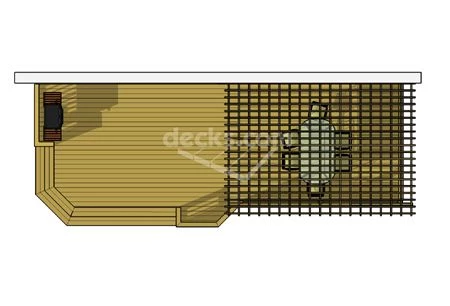

Perspective, plan view, and footing layout plans 2LM3614P16

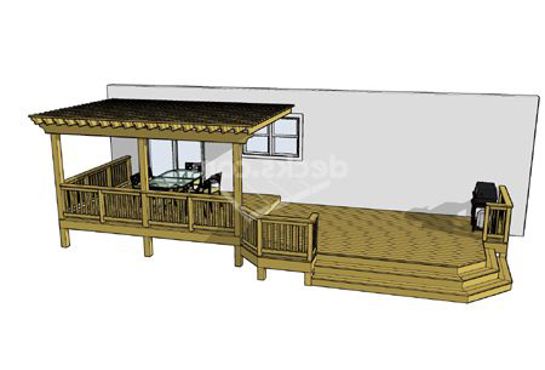

2LM3614P16 Reverse
2LM3614P16 Reverse
Front Elevation
2LM3614P16 Front Elevation
Side Elevation
2LM3614P16 Side Elevation
Reverse Front Elevation
2LM3614P16 Reverse Front Elevation
Reverse Side Elevation
2LM3614P16 Reverse Side Elevation
Pergola House Attachment Detail
Pergola House Attachment Detail
Materials Breakdown
A list of materials broken down by deck section specific to this plan
Materials Order List
A list of materials for ordering specific to this plan
Plan Specs
A list of specs specific to this plan
