Laying Out the Deck Ledger Board

Before driving the structural screws to firmly attach the ledger, be sure to draw your joist locations onto the face of the ledger. The reason for laying out the joist locations is to prevent placing a joist on top of a structural bolt holding the ledger in place. In the case of a rectangular deck, you could lay out the joists on the ledger (on a set of sawhorses) before you install it. But if the deck will have a number of angles or is very long, it is easier if you lay out with the ledger installed on the house first.

Ledgerbolt
PinterestSave

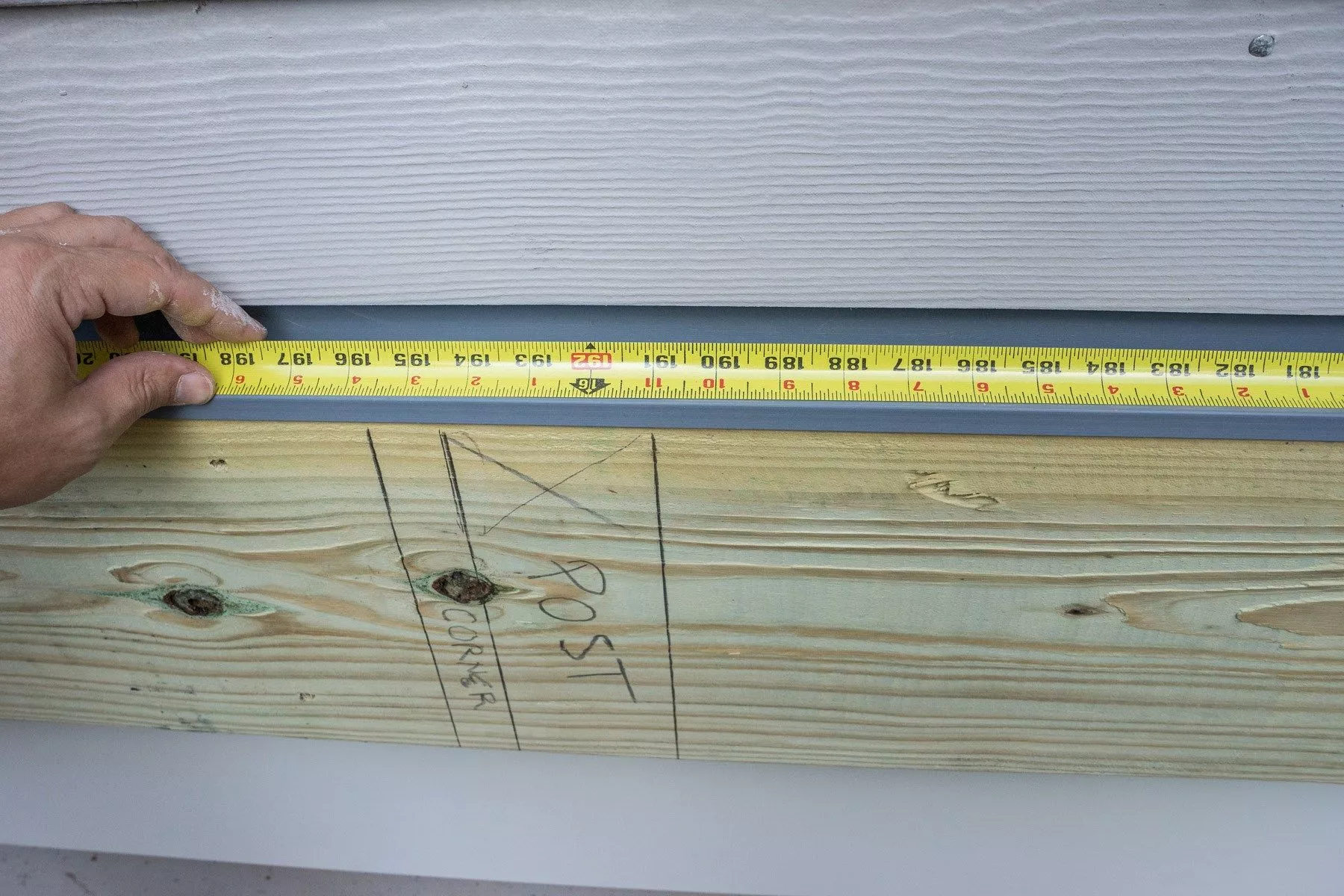

Read this article to determine your joist spacing. (In our example, joists are 16" on center to support 5/4 pressure-treated decking laid perpendicular to the joists.) Joists are usually installed “on center,” meaning the spacing number – usually, 16" or 12" – falls in the center of the joist’s thickness.

Marking for a doubled rim joist at an end of the ledger
PinterestSave

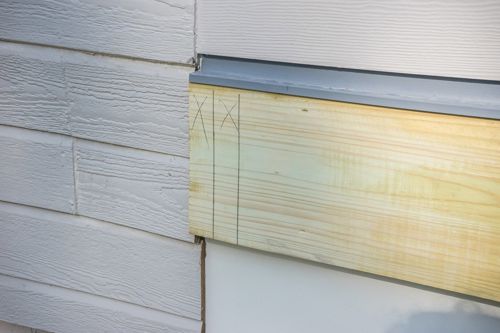

Marking for a doubled rim joist at an end of the ledger

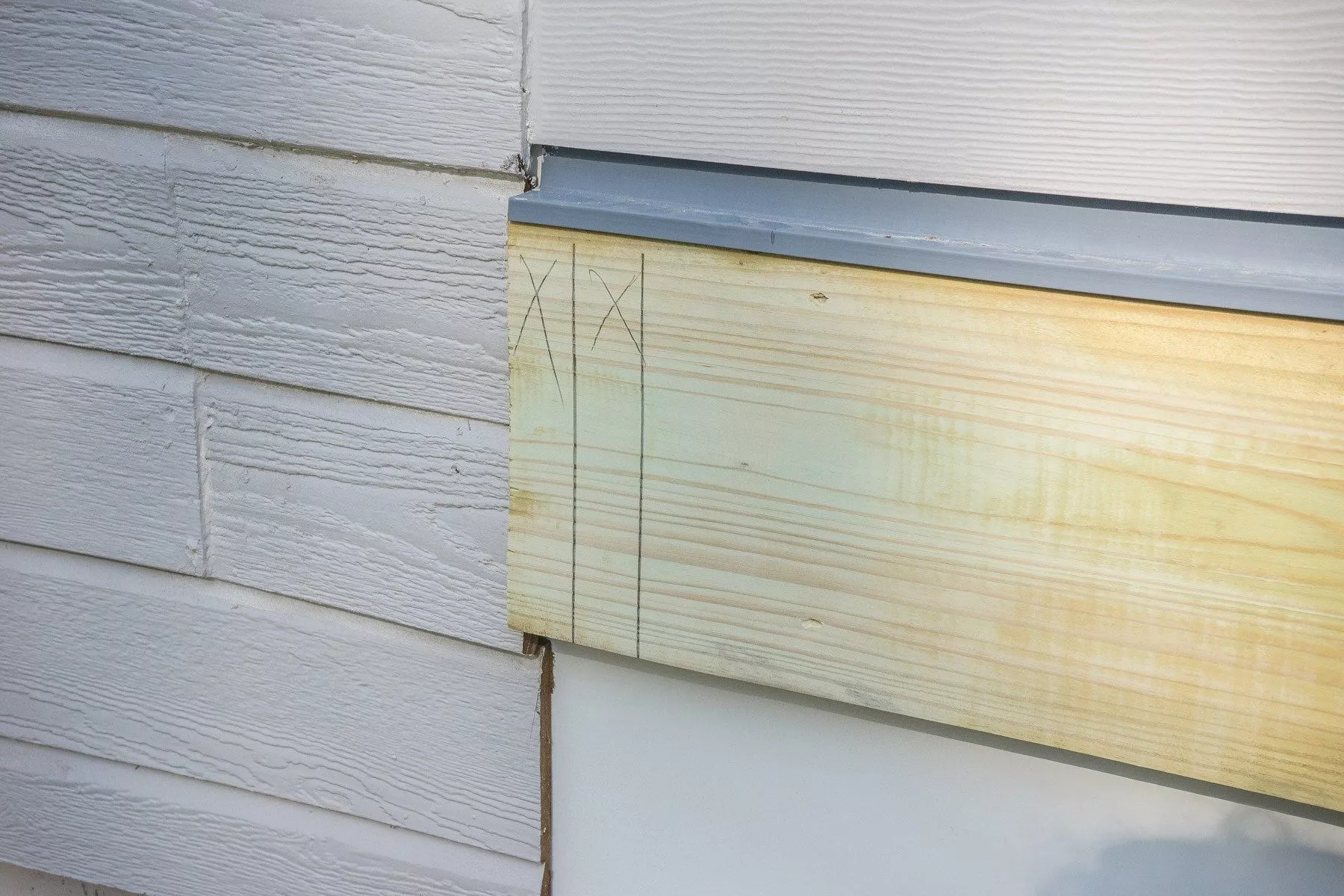

At the end of the ledger, the outside joist will butt into the face, rather than the end, of the ledger. Here, the ledger is marked for an outside joist that will be doubled. This double joist will require a double-concealed joist hanger. You cannot use a standard joist hanger at the end of a ledger, as it's cut flush with the edge of the ledger board. A standard joist hanger requires an extra 1.5" of space to nail to the ledger.

Use a framing sqaure
PinterestSave
Use a framing sqaure

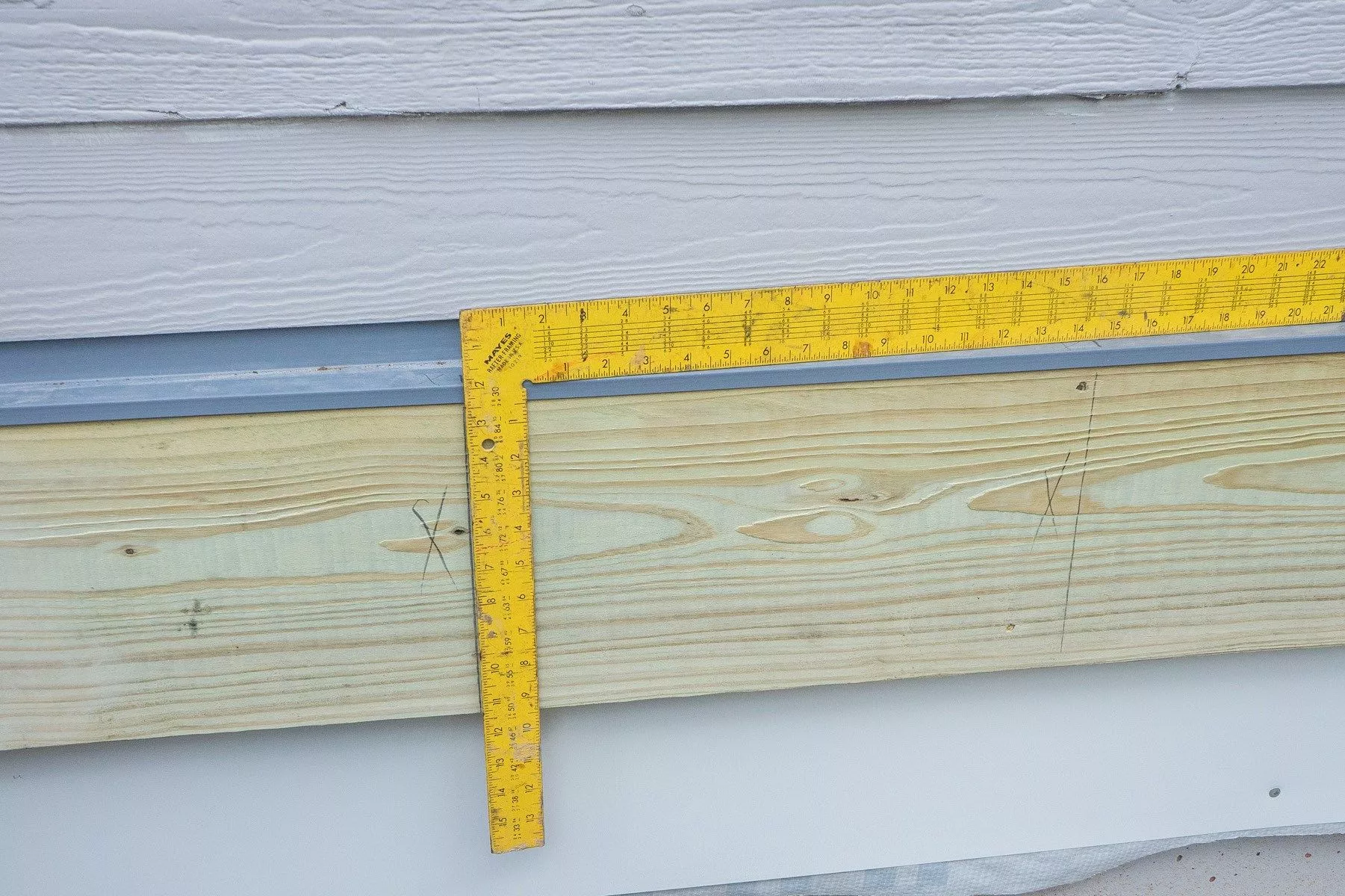

When laying out after the ledger has been temporarily attached, measure and mark as described above. Use a framing square to measure and mark the joist centers along the ledger board.

Locate the rail posts
PinterestSave
Locate the rail posts

If you plan on installing your railing posts on the inside of the deck frame, you will need to adjust the joist layout to allow space for the rail posts.
