Plan 1LH2416
Available in 16 sizes

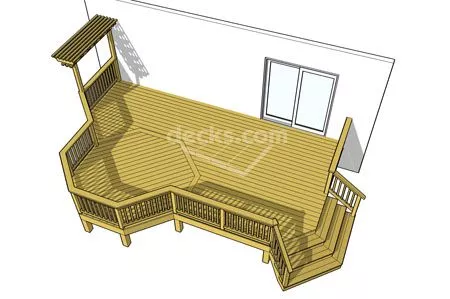

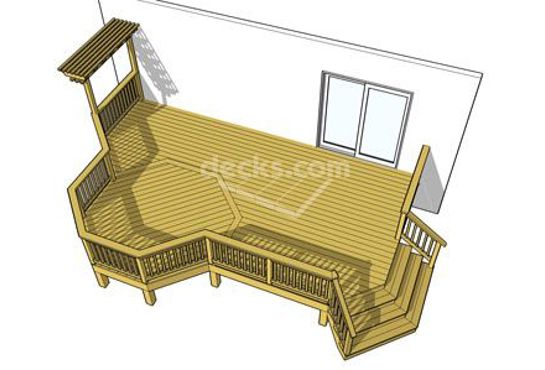

This plan creatively incorporates a 10' x 10' ocatgon into a large 1 level 24' x 16' deck. This design also features an interesting arbor to provide shade which is balanced by an angled stair on the opposite side to open the plan to its surroundings. Perfect for relaxing and entertaining.
Tap an image top zoom in
Details for Deck Plan 1LH2416:
- Square Feet: 304
- Width: 24'
- Depth: 16'
- Height: 2'6"
- Levels: 1
Access Downloadable Deck Plans & Resources
Log in or create an account to access the resources below.
Plans Guide
Comprehensive deck construction guide with details for footings, ledger board, support, deck beam and joist, post, stairs, and guard rails
Deck Plans

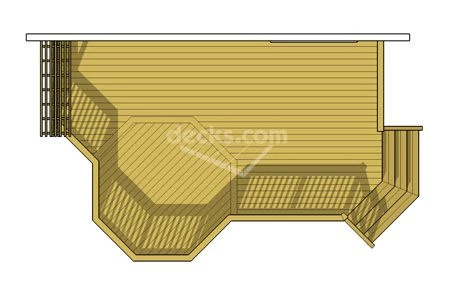

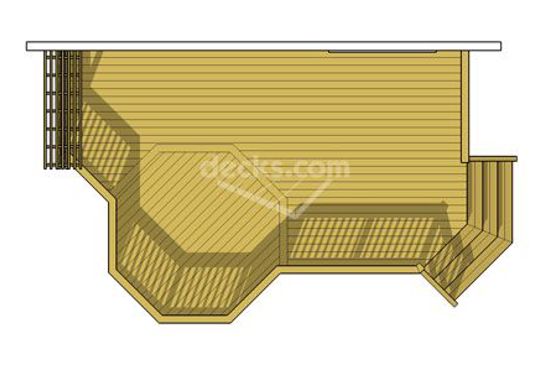

Perspective, plan view, and footing layout plans 1LH2416

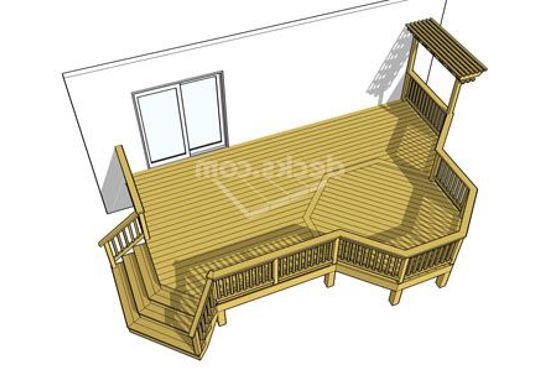

1LH2416 Reverse
1LH2416 Reverse
Elevations
1LH2416 Elevations
Reverse Elevations
1LH2416 Reverse Elevations
Materials Breakdown
A list of materials broken down by deck section specific to this plan
Materials Order List
A list of materials for ordering specific to this plan
Plan Specs
A list of specs specific to this plan
