Plan 1LG2416
Available in 15 sizes

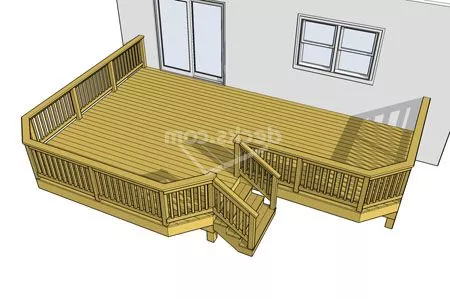

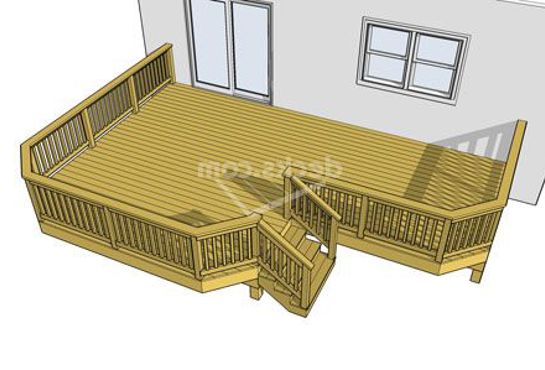

This is a very popular deck design. It features a compact plan with a 24' x 16' primary area perfect for entertaining as well as a 10' x 10' secondary area for grilling.
Tap an image top zoom in
Details for Deck Plan 1LG2416:
- Square Feet: 313
- Width: 24'
- Depth: 16'
- Height: 2'6"
- Levels: 1
Access Downloadable Deck Plans & Resources
Log in or create an account to access the resources below.
Plans Guide
Comprehensive deck construction guide with details for footings, ledger board, support, deck beam and joist, post, stairs, and guard rails
Deck Plans

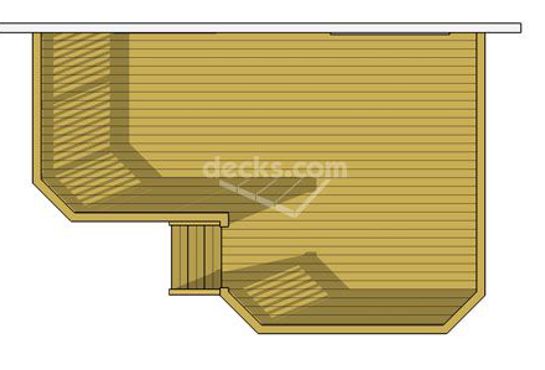

Perspective, plan view, and footing layout plans 1LG2416

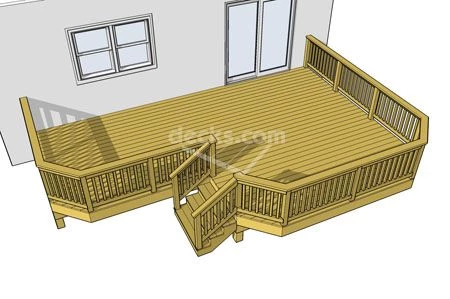

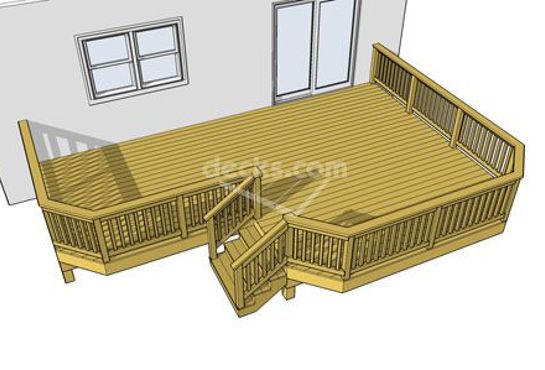

1LG2416 Reverse
1LG2416 Reverse
Elevations
1LG2416 Elevations
Reverse Elevations
1LG2416 Reverse Elevations
Materials Breakdown
A list of materials broken down by deck section specific to this plan
Materials Order List
A list of materials for ordering specific to this plan
Plan Specs
A list of specs specific to this plan
Need to create an account? Sign up here.
