Plan 1LO1816

Available in 15 Sizes

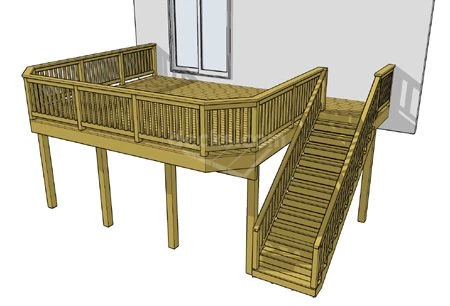

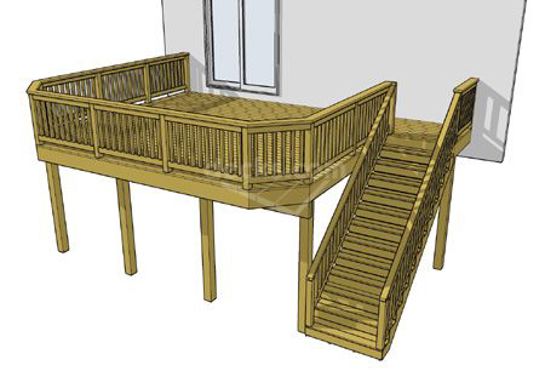

This design features a 18' x 16' primary space with clipped corners in a compact plan. This plan effectively uses space and emphasizes functionality.

SELECT A SIZE:

Available sizes range from 16'x12' to 24'x16'

Details for Deck Plan 1LO1816:
  • Square Feet: 302
  • Width: 22'
  • Depth: 16'
  • Height: 8' 2"
  • Levels: 1

Downloadable Deck Plans and Resources

Log in or create an account to access the resources below.

Access your free deck plan resources below.


  • icon

    Plans Guide

    Comprehensive deck construction guide with details for footings, ledger board, support, deck beam and joist, post, stairs, and guard rails

    Comprehensive deck construction guide with details for footings, ledger board, support, deck beam and joist, post, stairs, and guard rails

  • icon

    Deck Plans

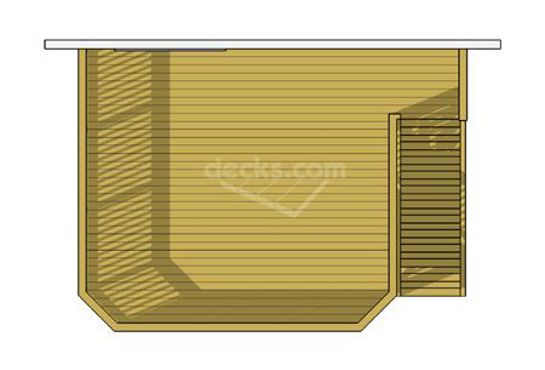

    Perspective, plan view, and footing layout plans 1LO1816

    Perspective, plan view, and footing layout plans 1LO1816

  • icon

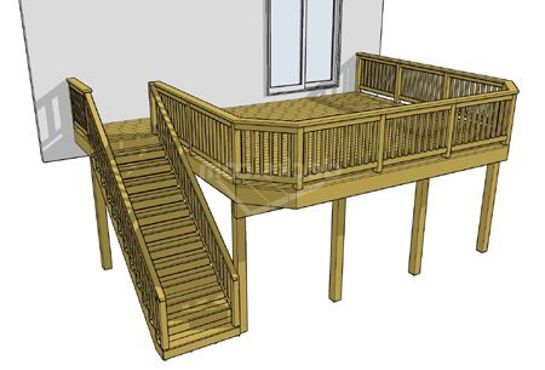

    1LO1816 Reverse

    1LO1816 Reverse

    1LO1816 Reverse

  • icon

    Front Elevation

    1LO1816 Front Elevation

    1LO1816 Front Elevation

  • icon

    Side Elevation

    1LO1816 Side Elevation

    1LO1816 Side Elevation

  • icon

    Reverse Front Elevation

    1LO1816 Reverse Front Elevation

    1LO1816 Reverse Front Elevation

  • icon

    Reverse Side Elevation

    1LO1816 Reverse Side Elevation

    1LO1816 Reverse Side Elevation

  • icon

    Materials Breakdown

    A list of materials broken down by deck section specific to this plan

    A list of materials broken down by deck section specific to this plan

  • icon

    Materials Order List

    A list of materials for ordering specific to this plan

    A list of materials for ordering specific to this plan

  • icon

    Plan Specs

    A list of specs specific to this plan

    A list of specs specific to this plan
