Plan 2L052

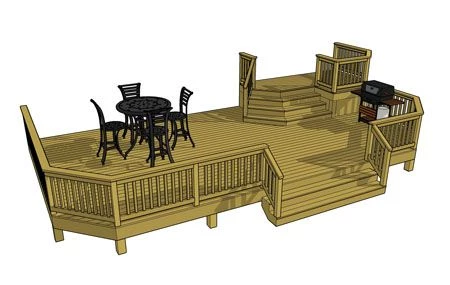

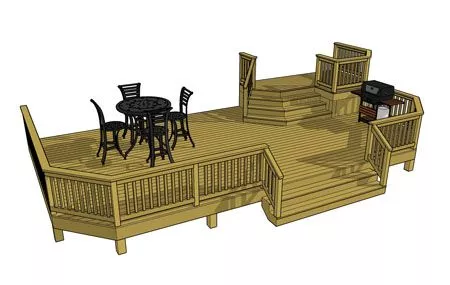

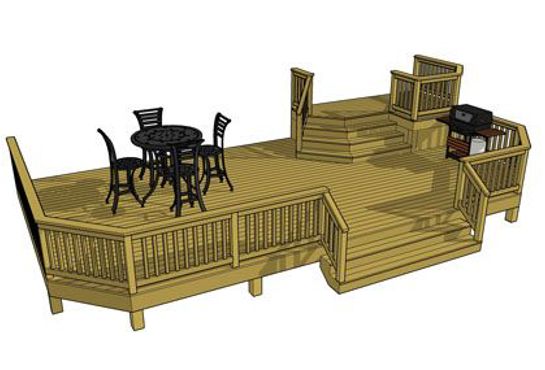

This 2 level deck features a 12' x 7' top deck with grilling area and inset angled staircase which steps down to a larger lower deck. The 30' x 16' lower deck functions as the primary entertaining space. Both decks use consistent angles and coordinated staircases that allign to promote free movement on the deck.
Tap an image top zoom in
Details for Deck Plan 2L052:
- Square Feet: 498
- Width: 32'
- Depth: 18'
- Height: 4'5"
- Levels: 2
Access Downloadable Deck Plans & Resources
Log in or create an account to access the resources below.
Plans Guide
Comprehensive deck construction guide with details for footings, ledger board, support, deck beam and joist, post, stairs, and guard rails

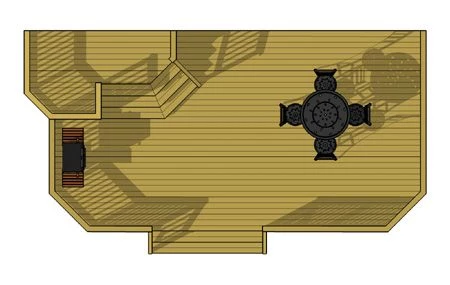

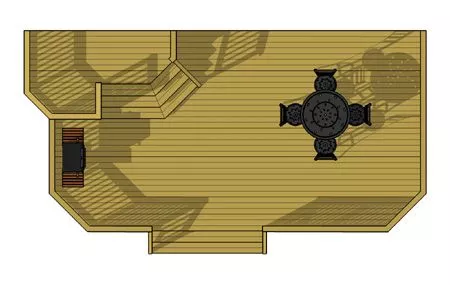

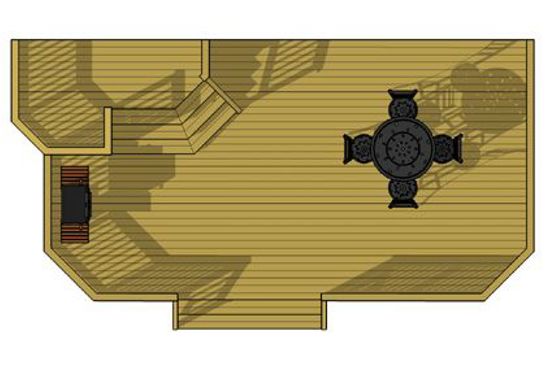

2L052
2L052

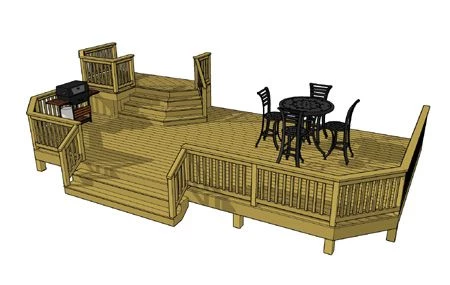

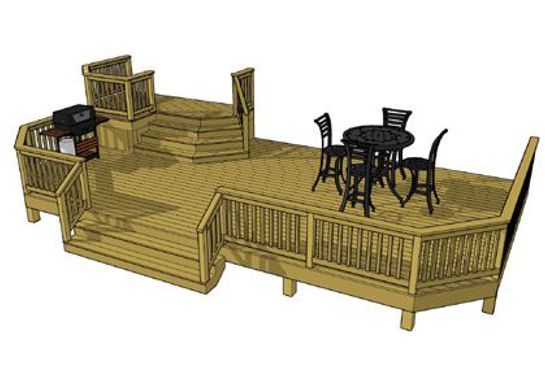

2L052 Reverse
2L052 Reverse
Front Elevation
2L052 Front Elevation
Side Elevation
2L052 Side Elevation
Reverse Front Elevation
2L052 Reverse Front Elevation
Reverse Side Elevation
2L052 Reverse Side Elevation
Materials Breakdown
A list of materials broken down by deck section specific to this plan
Materials Order List
A list of materials for ordering specific to this plan
Plan Specs
A list of specs specific to this plan
